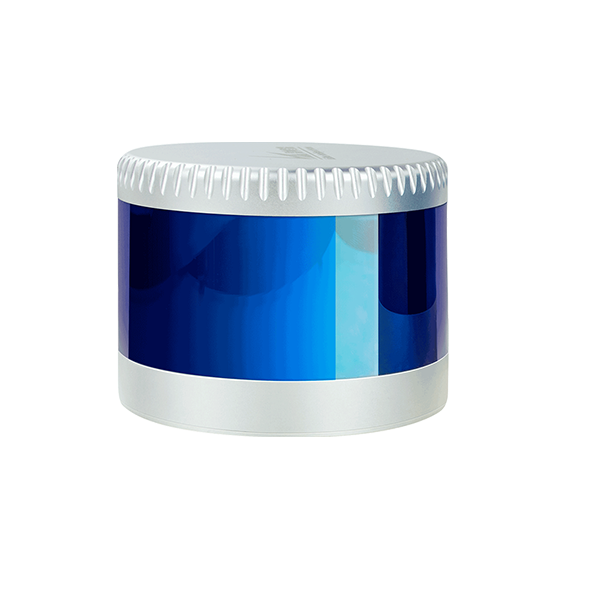

CX32 3D LiDAR Sensor – 150m – DHL Global Shipping

Introduction

CX32 3D LiDAR sensor achieves 360° high-speed scanning with 32 beam laser, measurement range up to 150 m, ±3cm accuracy, minimum vertical angle resolution up to 1°(C32) , C32 widely used in autonomous vehicle, ADAS, smart transportation, service robots, logistics, surveying and mapping, security and so on.

Inside the CX32 enclosure are 32 pairs of laser-emitting and receiving devices mounted on the bearings. A 360° panoramic scanning is done by rotating the internal motor at 5Hz (or 10Hz, 20Hz).

Features

High point density, capability of generating approximately 640,000 point per second（C32）
Wide field of view, with 360° horizontal FOV and 32°vertical FOV.
The C32 Vertical angular resolution up to 1°, focused on front area data acquisition.

Specifications of CX32-150m 3D Lidar Sensor:

High point density, the capability of generating approximately 640,000 points per second
Wide field of view, with 360° horizontal FOV and 32°vertical FOV.
The C32 Vertical angular resolution up to 1°, focused on front area data acquisition.
Channels: 32
Measurement Technique: TOF
Wave Length: 905nm
Laser Classification: Class 1 Eye-safe/ IEC 60825-1:2007 & 2014
Measurement Range: 150m
Ranging Accuracy: ±3cm
Angle resolution:
Horizontal: 5Hz: 0.09º / 10Hz: 0.18º / 20Hz: 0.36º
Vertical: 1°
Data Points Generated: Max 640,000 points per second
Rotation Speed: 5~20 Hz
FOV – Horizontal: 360°
FOV – Vertical: -16°~15°
IP: IP67
Weight: 1600g
Dimensions (D*H): 120*110mm
Communication Interface: 1000M Ethernet、PPS
Operation Voltage: 10V~36VDC

Point Cloud DEMO of CX32

Applications

Autonomous Robots:

Autonomous Driving

V2x:

Support Documents Of CX32 3D LiDAR Sensor:

Parts included in the package:

1 unit of CX32 LiDAR Scanner
1 unit of power and communication adapter
1 unit of Ethernet cable
Screws for installation
