OmniSLAM Handheld & Backpack LiDAR Scanner R8+ – Millimeter Accuracy
Request for Quote
OmniSLAM handheld / Backpack LiDAR scanner R8 Plus with OmniSLAM Modeler which is a point cloud modeling system, its powerful kernel successfully breaks the boundaries between point clouds and models.
In the journey of outlining the reality,R8+ is not just a tool, it’s a companion along the way,witnessing the perfect combination of virtualization and reality.
Key Features:
1. World-Realistic Color
Precision Level (mm)
Rotating single lidar
2. Dynamic Scanning accuracy 2mm
3. 2mm Ultrathin point clouds
4. Maximum 500 thousand/㎡ hyperfine point
clouds
5. Pixel-level texture like real scene
*Backpack Included
Delivery Terms:
DAP, Global shipping
Parts included in the package:
1 unit OmniSLAM R8+ handheld LiDAR Scanner;
Backpack Kit;
Warranty:
OEM Warranty, 1 year;
Lead Time:
2 weeks plus transport.
OmniSLAM Millimeter Accuracy Handheld & Backpack LiDAR Scanner R8 Plus

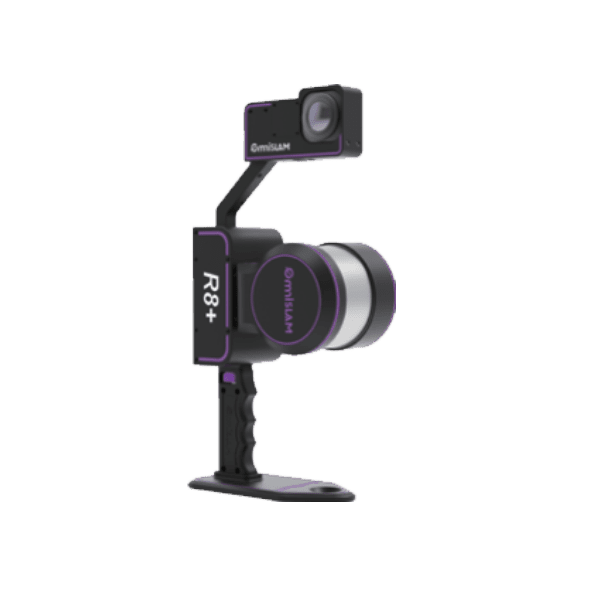

Boasting an integrated 32 channels LiDAR sensor (with detection range of 120 or 300m) and HD camera, R8+ is a 3D LiDAR mapping system for many industry-specific projects. Multi-platform support, combining LiDAR and cutting-edge RTK/PPK SLAM algorithms to deliver millimeter precision point cloud and
Handheld
Backpack, Wearable
Powered by an industry leading SLAM algorithm, whether you’re in narrow passageways, tunnels, rugged terrain, or other challenging GNSS restricted areas such as underground garages, high-precision point cloud results in all environments can be obtained with no worries.
Demo Video
Key Features of OmniSLAM Millimeter Accuracy Handheld & Backpack LiDAR Scanner R8 Plus
The R8+ represents a paradigm shift in mobile 3D scanning. By combining cutting-edge technology, precision, and ease of use, it sets a new standard for capturing and modeling the real world. Whether you’re a professional in architecture, engineering, or any other field requiring detailed 3D representations, the R8+ is not just a tool; it’s a partner in your journey to outline reality and merge it seamlessly with the virtual world.
Precision Redefined
Accuracy is the cornerstone of the R8+'s capabilities. It boasts an impressive 2mm relative accuracy and produces point clouds with precision measured in millimeters. This level of detail ensures that measurement data is not only accurate but also rich in detail, meeting the demands of even the most intricate applications.
High-Resolution Point Clouds

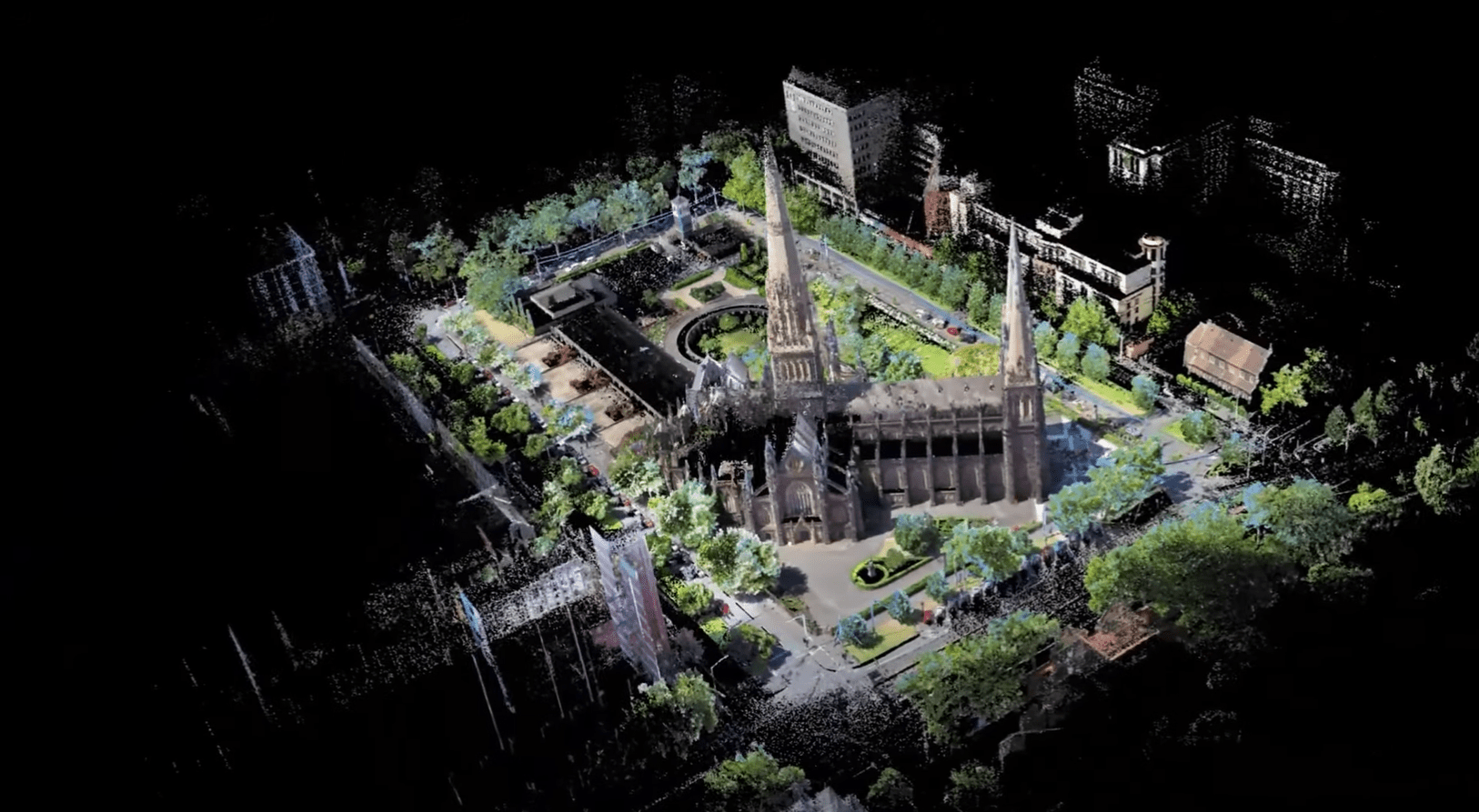

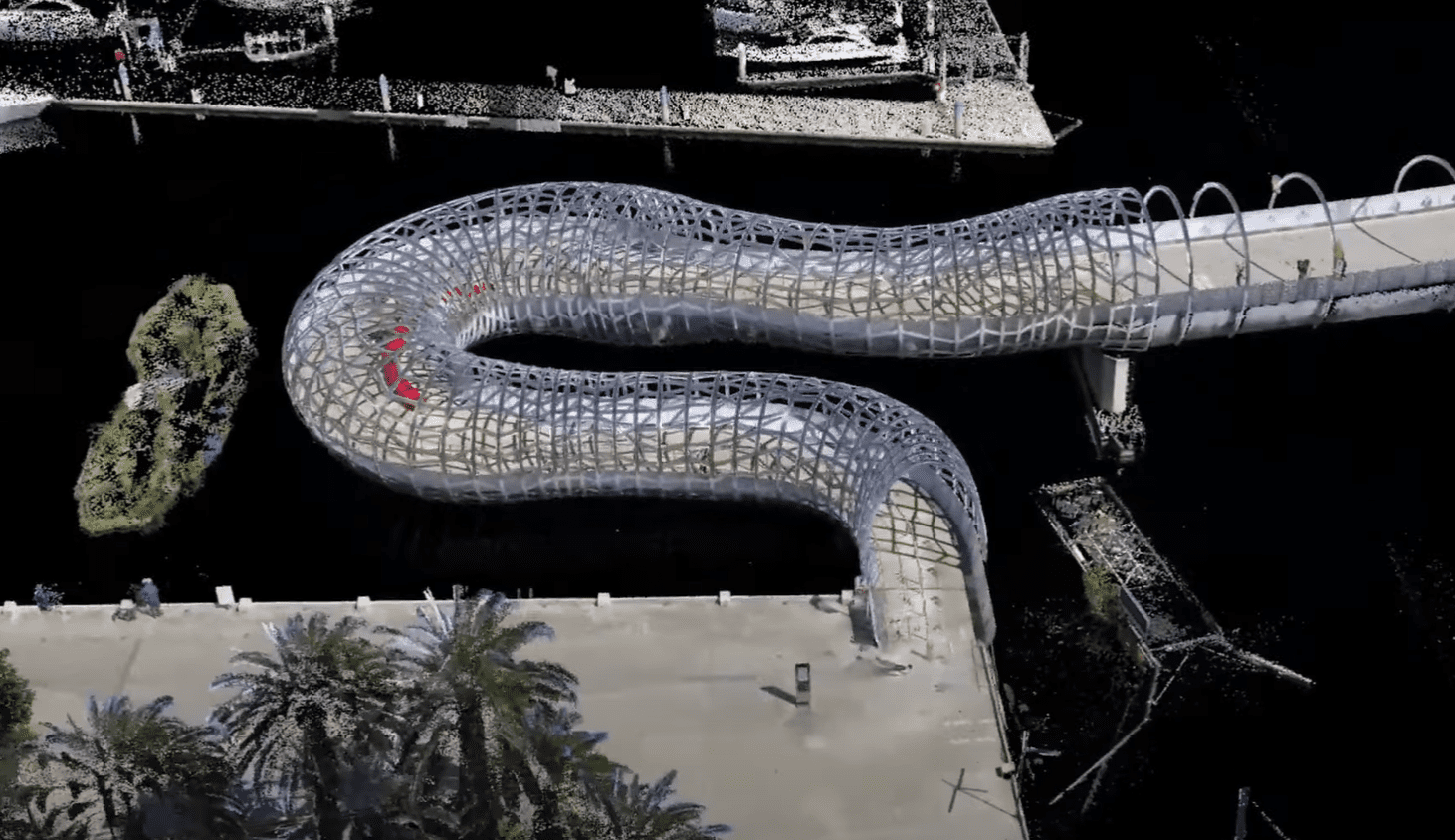

The R8+ carves reality into exhaustive point clouds, achieving a remarkable density of 250,000 points per square meter. This ensures that every detail is captured, regardless of the complexity of the scene. The ultrathin point clouds, with a thickness of just 2mm, showcase specific details with vivid effects, providing unparalleled clarity and precision.
Unmatched Angular Accuracy
In addition to its high-resolution capabilities, the R8+ achieves an angular accuracy of 0.005 degrees in both horizontal and vertical measurements. This level of precision makes it an ideal solution for applications requiring meticulous detail and accuracy.
Realistic Color Rendering
The R8+ doesn’t just capture geometry; it brings scenes to life with its ability to generate color point clouds at the pixel level. Powered by the NERF technology of OmniSLAM, the R8+ produces realistic, vibrant point clouds, making every scan a true-to-life representation of reality.
Agile movements are allowed during Scanning
Due to the advanced SLAM Algorithm of OmniSLAM™, operators do not need to hold the device carefully and move slowly. The scanner can still obtain highly accurate point clouds with agile movements.
Light-Weighted Auto Modeling of 3D Real Scenes
Precision Level (mm) Point Clouds support the generation of 3D Mesh Models in OBJ/OSGB format. Owing to the OmniS- LAM™ multi-model fusion Modeling Method of lidar and panoramic image, there's no need for heavy computing. A single computer, rather than a clumsy cluster, can efficiently build mesh models. Furthermore, the general data formats are compatible with the third party Model Refinement softwares.
System Parameters of OmniSLAM R8+ Handheld LiDAR Scanner
Laser Sensor Configurations
| MODEL | R8+32 | R8+300 |
| Laser Channels | 32 | 32 |
| Measure Range | 120m | 300m |
| Points per Second | 640,000 | 640,000 |
Specifications
| Model | R8+ |
| Relative Accuracy | 2mm（Dynamic/Static Scanning） |
| Absolute Accuracy | Horizontal: 1.8cm Vertical: 2.5cm |
| 5A Criteria of Surveying and Mapping | √ |
| Repeatability Accuracy | 2cm |
| Horizontal/Vertical Accuracy Error | 0.005° |
| Point Cloud Density | 250,000 pts/m² |
| Point Cloud Thickness | 2mm |
| Moving Objects Removal | √ |
| Point Cloud Colorization | √ |
| Lidar | — 32·120m·640,000pts/s 32·300m·640,000pts/s |
| Field of View | 360°×360° |
| Satellite System | GPS/GLONASS/Galileo/BDS/QZSS |
| RTK Accuracy | Horizontal：0.8cm+1ppm Vertical： 1.5cm+1ppm |
| CORS System | √ |
| GNSS Receiver | √ |
| Image Sensor | 1inch SONY CMOSx2 |
| Camera Field of View | 360° |
| Lens | Leica F2.2×2 |
| Working Temp. | -25℃~65℃ |
| Size (L*W*H) | 35.0×32.0x99.0cm |
| Weight | Wear: 8.7kg Hand: 2.1kg(120m) Hand: 1.8kg(300m |
| Real-time Point Clouds | √ |
| LIO-PANO | √ |
| RTK-SLAM | √ |
| PPK-SLAM | √ |
| LiRF | √ |
| 3D Mesh Models | √ |
| 3D Thermal Map of Point Cloud Accuracy | √ |
| Accuracy Report | √ |
| GCP Inserting Instruction | √ |
Applications
Large-scale DLG Drawing
The Mobile SLAM Color Laser Scanner acquires the no-fly zone DLG efficiently and uses the Panoramic Image to do Real-Time Interpretation which can complete the large-scale drawing works.
Mine Roadway Cubage Calculation
The Point Clouds that is acquired from the Mobile SLAM Color Laser Scanner clearly displays the form and structure of the mine roadway, it also can be used for quick calculation of the cubage, which improves the management efficiency of mines.
Digital Twin - factory, substation
OmniSLAM™ Modeler processes precision-level(mm) colored point clouds into 3D Mesh Models in OBJ/OSGB format to provide basic data for the factory and substation digital twin.

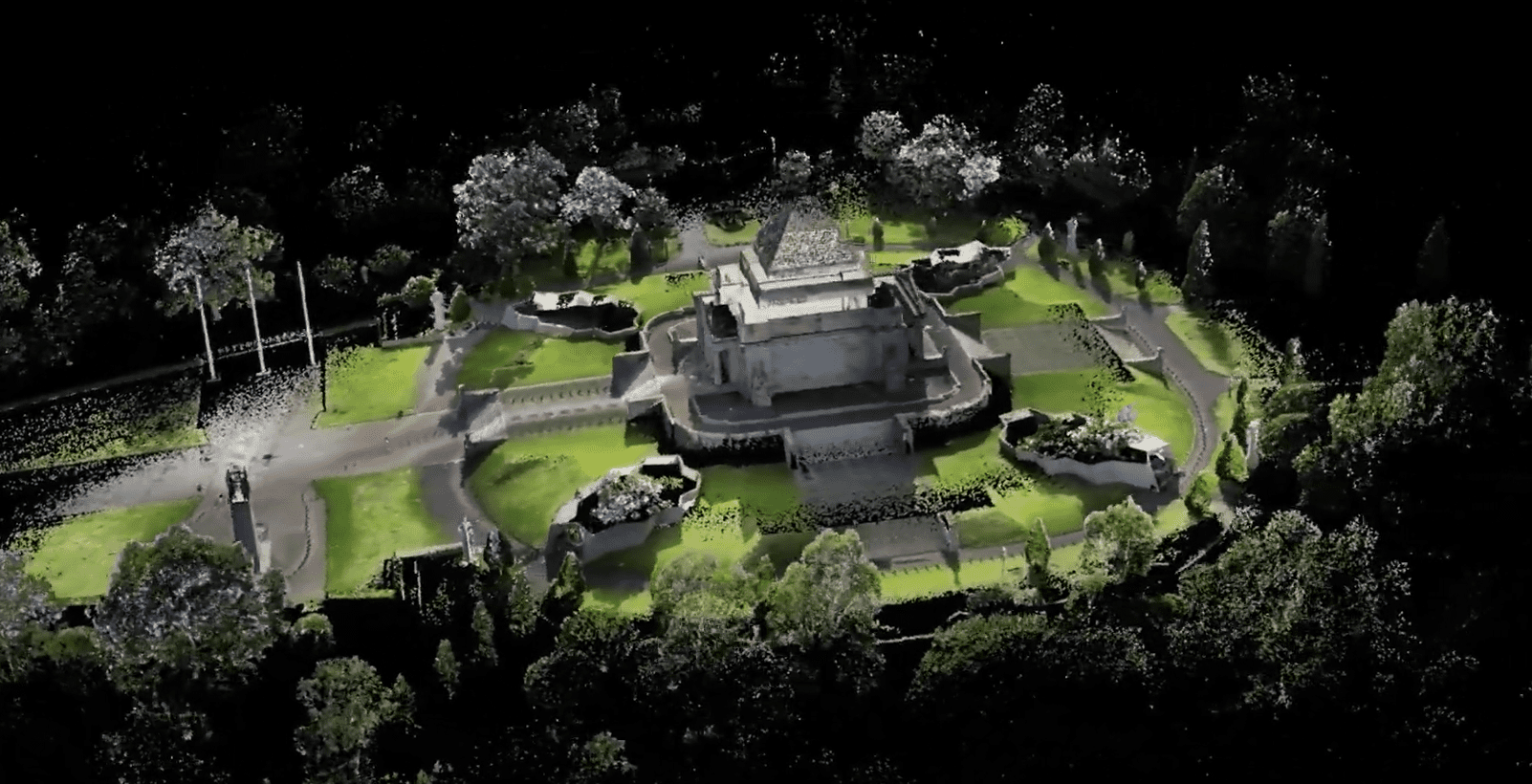

Culture Heritage Reserve
The Mobile SLAM Color 3D Laser Scanner is able to efficiently acquire precision level(mm) point clouds of the interior furnishings, exterior carvings, and ancient building structures. The scanner quickly plots flat/eleva-tion/sectional drawings, and uses the OmniSLAM™ Modeler software to get 3D Mesh Models, which can efficiently assist the digital protection of ancient buildings.
BIM, Construction
The R8+ is a game-changer for the construction industry and Building Information Modeling (BIM). Its precision and efficiency make it an indispensable tool for creating accurate as-built models, site surveys, and progress tracking. By capturing high-resolution point clouds with millimeter-level accuracy, the R8+ ensures that construction professionals can monitor project progress, identify discrepancies, and maintain alignment with design specifications.
Required Software for R8+ Handheld LiDAR Scanner
Pre-processing Software - Included In Hardware Price
OmniSLAM™ Capturer Data Collection Software
-Display Data, Collection, Storage, and Trans- mission on phone. -Support real-time display to avoid repeated scanning. -Monitor the device status in real time.
OmniSLAM™ Viewer - Data Display Software
-Support interaction display of real scenes and point clouds. -Support highspeed loading of point clouds. -Support real scene measurement and point cloud clip. -Support display methods of point clouds by Color, Density, Height.
OmniSLAM™ Mapper - Data Solution Software
-Automatically process data into point clouds, panoramas, and trajectories. -Support coordinate transformation, removal of moving objects, and solution of introduc- ing GCP. -Support point cloud cleaning, WGS84 point clouds generating, and other functions. -Support exporting of Accuracy Report and GCP Inserting Instruction.
OmniSLAM™ Modeller - Automatic Mesh Model Generation
Automatically generate Models by using point clouds with precision level (mm). Support model files in common formats, such as obj, osgb, and others. Introduce the third party Model Refinement tools for processing. No necessary for clusters, a single computer can efficiently build models. Light-Weighted Modeling Solutions of 3D Realscenes. Not applicable to R8.
Date management, Post-processing and Analyzing Software - Extra Cost On Top Of Hardware
-
LiDAR Point Cloud Processing SoftwareLiDAR360 MLS HD LiDAR Mapping Software – 1 Year Subscription
US$3,600.00 Excl. GST/VAT Add to cart -
LiDAR Point Cloud Processing SoftwareLiPowerline – Powerline Point Cloud Data Analyzing Software – 1 Year Subscription
US$3,600.00 Excl. GST/VAT Add to cart -
LiDAR Point Cloud Processing SoftwareLiDAR360 Point Cloud Data Management, Processing & Analyzing Software – 1 Year Subscription
US$3,600.00 Excl. GST/VAT Add to cart
