LS 3D MAPPING SYSTEM & LIDAR SCANNERS
- Both Real-time and Offline system available
- Non-contact acquisition security
- Fast and high sampling rate
- High resolution, high precision and high density
- Optional HD digital camera
LS 3D LIDAR MAPPING SYSTEMS

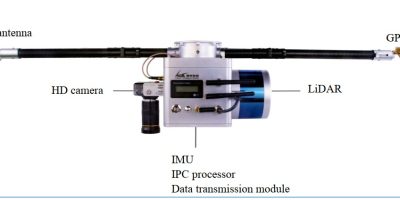

GOLD EYE 1 - 3D LIDAR MAPPING SYSTEM
- Longest detection distance: 200m
- Accuracy: ±3cm
- Horizontal FOV: 360°
- Measuring point rate: 640k point/s dual return
- Environmental Protection: IP67
Lidar Sensor Integrated

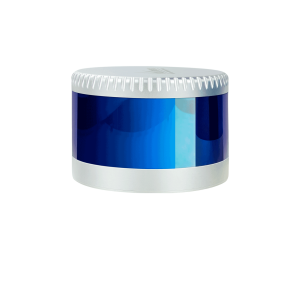

MS-C32/16 Lidar Sensor - 3D Mapping Version

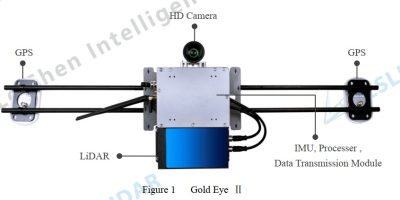

GOLD EYE 2 - 3D LIDAR MAPPING SYSTEM
- Longest detection distance: 300m
- Accuracy: ±2cm
- Horizontal FOV: 120°
- Measuring point rate: 852k point/s dual return
- Environmental Protection: IP67
Lidar Sensor Integrated

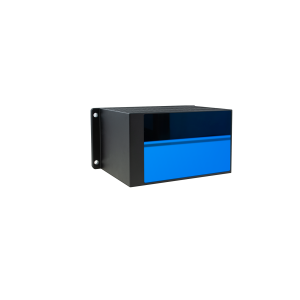

MS-CH32 Lidar Sensor - 3D Mapping version

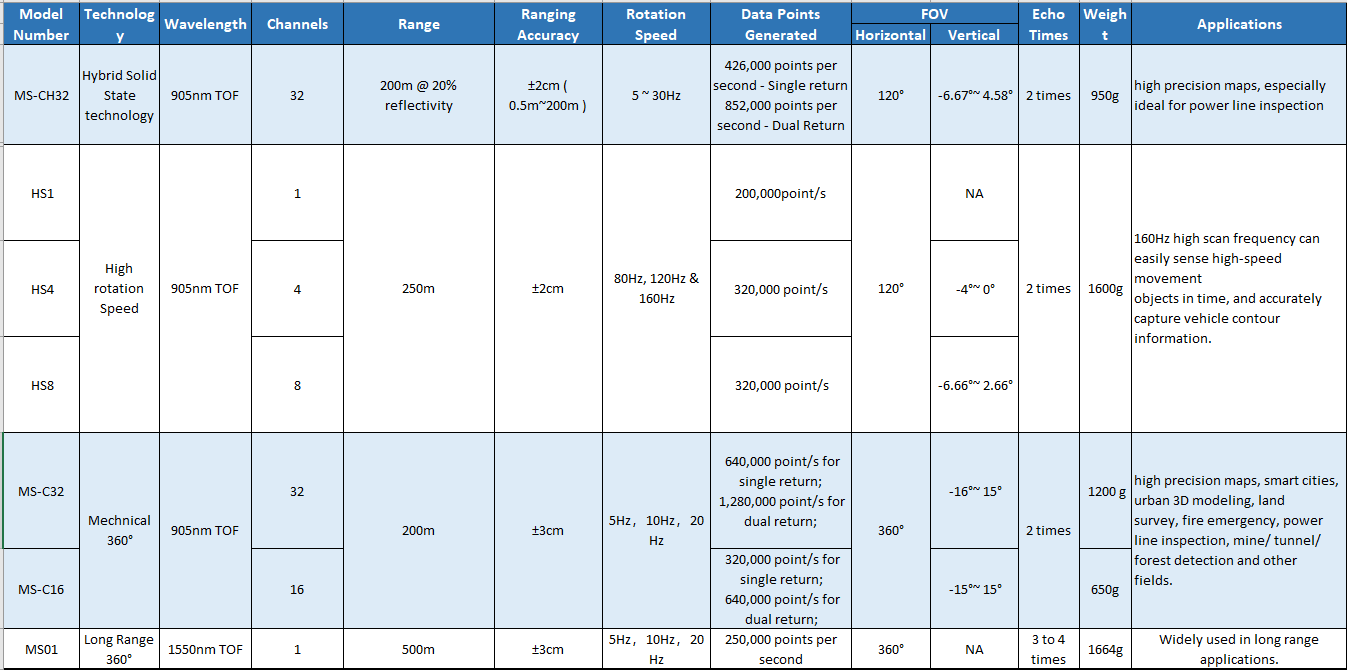

pARAMETERS OF LS MAPPING LIDARS
