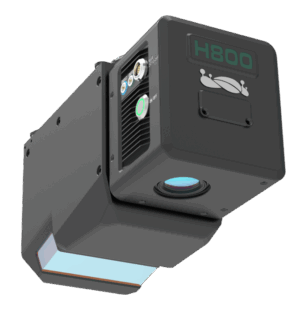

LiAir H800 Drone LiDAR Scanner – Long Range
US$65,000.00 Excl. GST/VAT
LiAir H800 is a new generation of medium and long range lidar scanning system developed. It integrates domestic light and small lidar, self-developed inertial navigation and built-in high-resolution mapping camera. It has the advantages of lightweight and long range. It can be used with flight control software GreenValley and data post-processing software LiGeoReference , and the product is compatible with M350\M300 RTK .
Key Features of LiAir H800 Long Range Drone LiDAR Scanner
LiAir H800 has light weight design, and can be carried by DJI M300 or M350. With longer scanning range, better penetration ability, it performs better than mini-LiDAR systems in forestry, emergency disaster surveys, and long-range powerline inspections, etc.
Long Range
Up to 1000m scanning range
High Frequency
Up to 1000 kHz scanning frequency
High Accuracy
5mm point cloud thickness
High Penetration
Smaller light spots - 5cm circle @ 100m; 7 returns
Light Weight
Only 2.2kg, compatible with DJI M300 & M350
Intelligent
Self-adpative point cloud density
Specification of LiAir H800
Why customers choose LiAir H800
Compatibility with common drones - M300/350 compatible
Light weight & long range
2.2kg Weigh，can be carried by DJI M350 / M300 RTK
High accuracy - less than 5mm point cloud thickness on hard surface
Wide FOV & high coverage
High penetration - Small light spot and 7 returns
The laser spot is small and the energy is more concentrated, and it also support 7 renturs, these enable H800 to have stronger penetration ability for dense forest areas.
- H800 light spot 5cm diameter @ 100m;
- Known Brand L2 4 × 12 cm @ 100m
More dense and smooth point clouds than competition models
- H800 capture more details at 400m
- H800 has better penetration to the ground
Required Software for LiAir H800 Drone Long Range LiDAR Scanner
Pre-processing Software
Date management, Post-processing and Analyzing Software
