Molas B300 - Bankable Onshore Wind LiDAR Systems - Vertical Wind Profiler

Turn key wind monitoring LiDAR service in Australia
Fully Classified by DNV-GL according to IEC61400-12-1 ed2
Cost Effective - Under massive production
Robust Design - IP67 protection
Complex Terrain CFD simulation available

Measurement heights configuration by customer

Core patents for wind LiDAR held by Movelaser

Units have been deployed world wide

Correlation with cup anemometer

0 %

The Molas B300 onshore wind LiDAR was developed by Movelaser, based on all-fiber coherent doppler effect, through the 4-beam VAD scanning vector synthesis technology, can measure wind speed and direction in 30-300 m above the lidar. In addition, air temperature, humidity and other parameters can be measured by the sensor module. Molas B300 has the characteristics of high precision, stable system performance, maintenance friendly and data security.

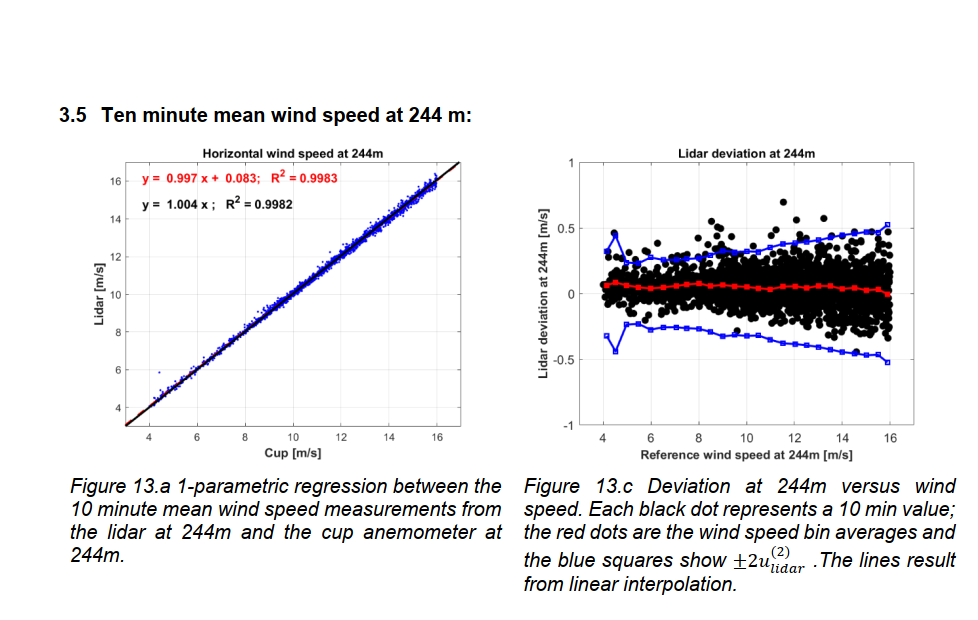

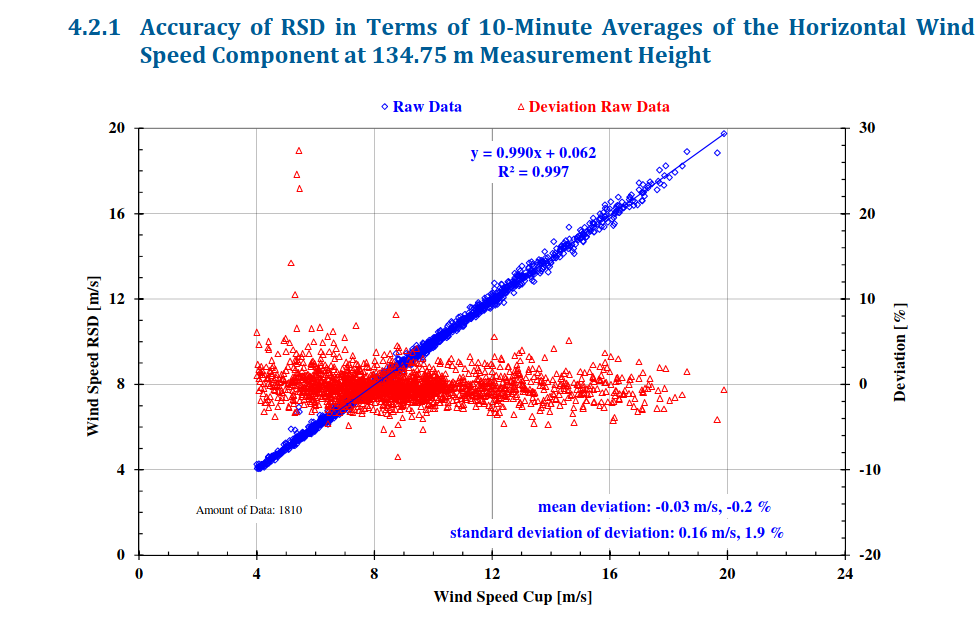

It has been tested by DNV-GL (Type specification classification test and independent performance test), WINDGUARD and DTU. Molas B300 onshore wind LiDAR can be applied for onshore and offshore Wind Resource Assessment (WRA), Power Curve Validation (PCV), Wind Power Prediction system, operation management of wind farm, atmospheric physics research, weather forecast, etc.

The four core modules of the vertical wind profiler LiDAR – Molas B300, including fiber lidar emitter, laser transceiver system, high-speed data acquisition system, data processing softwareare independently developed by Movelaser. The core modules, which have a high degree of matching and ensure the unified coordination and data information security of the whole machine system, have reached international advanced level.

Patent Pending Turn-key Wind LiDAR System, Patent Application Number: AU 2022901693

Key Features

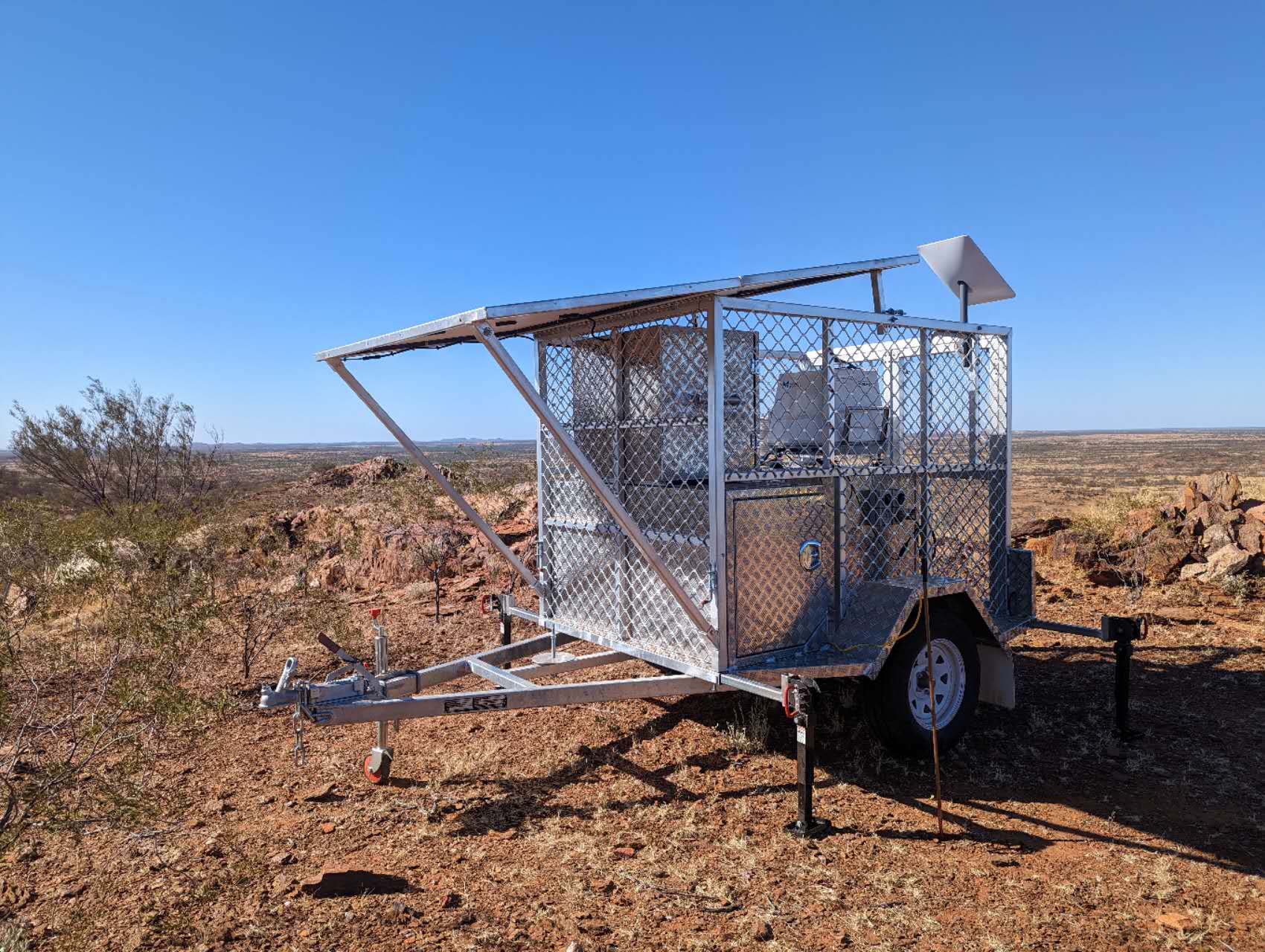

All-inclusive: LiDAR, power supply, and communication system are all included

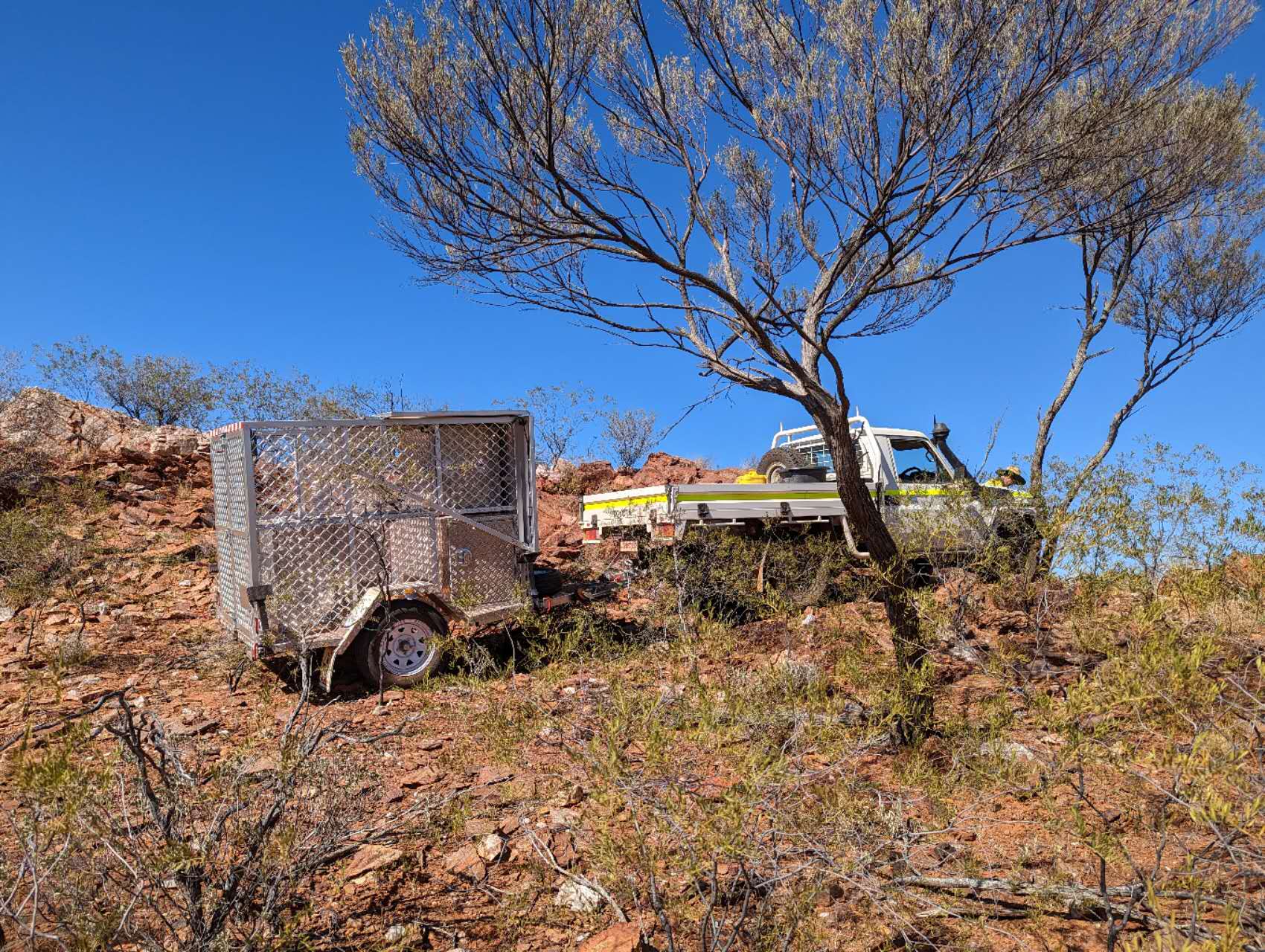

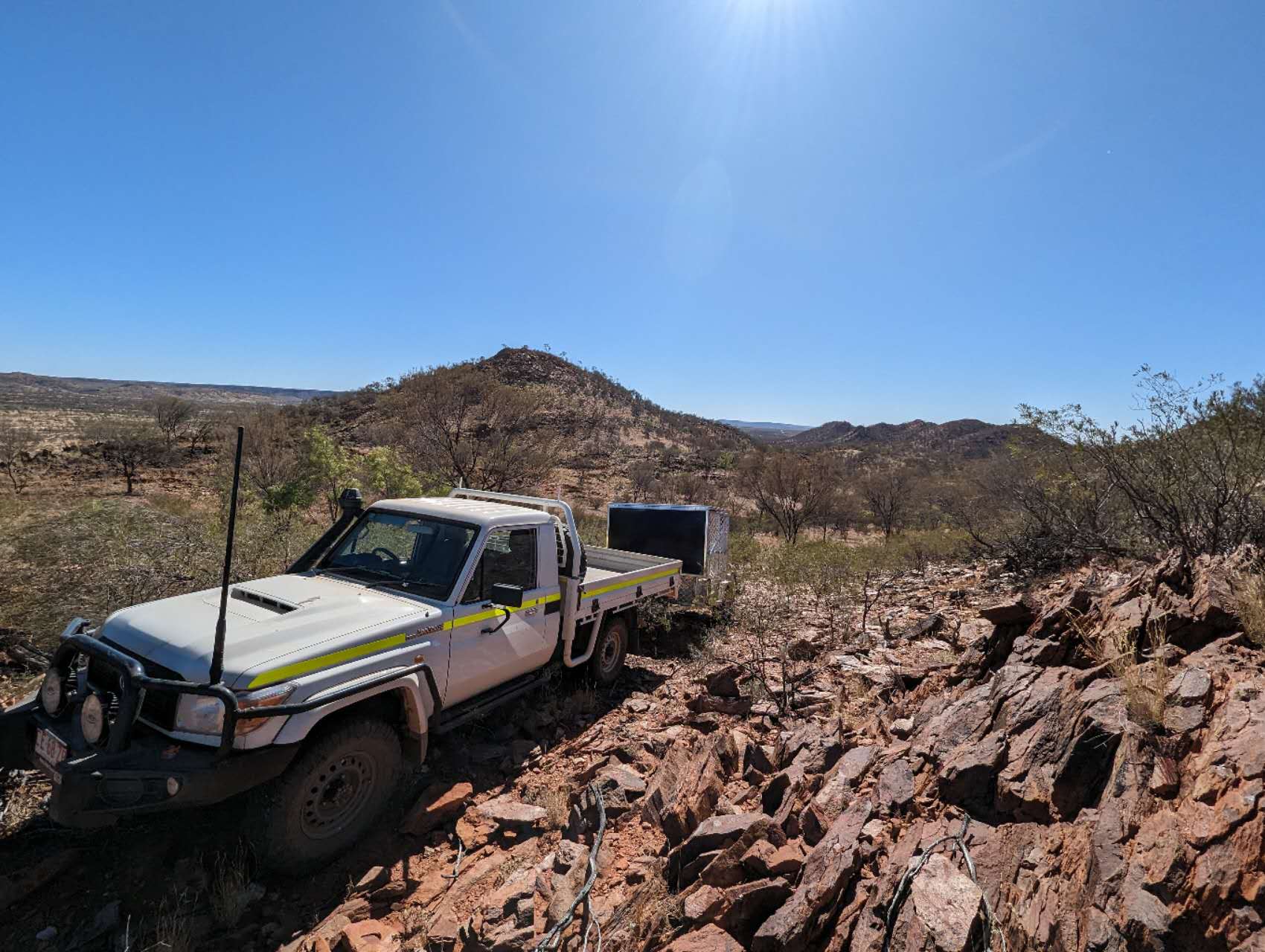

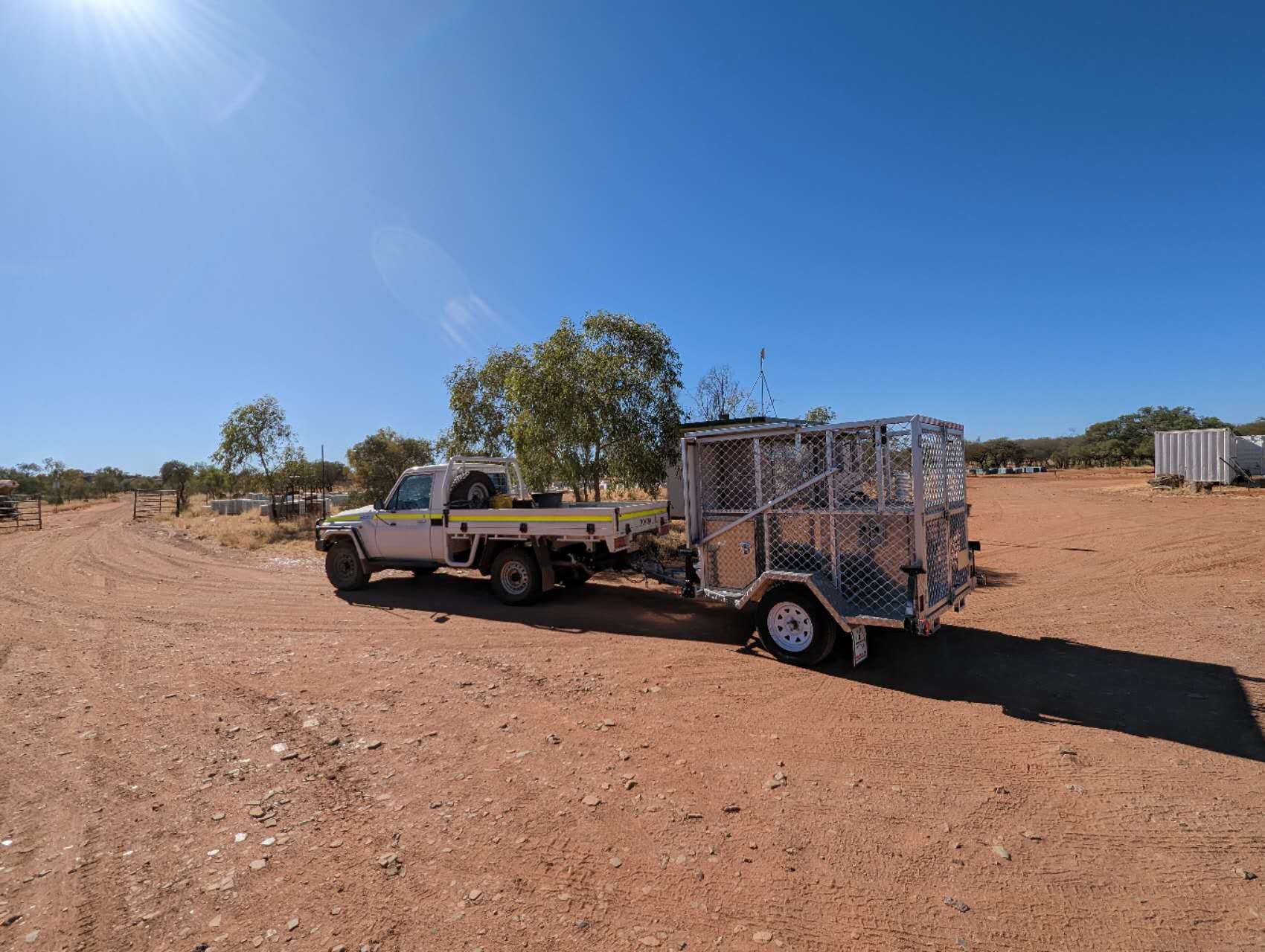

Portable: the whole system can be transported with 4X4 trailer

Easy to Operate: can be setup by 2 technicians within half an hour after the system arrives on site

Great quality: no comprise considered when talk about quality.

Measurement Parameters

Measuring distance	30-300m
Measure the number of Heights	12 (User Configurable)
Sampling frequency	1Hz
Wind speed measurement accuracy	0.1m/s
Wind direction measurement accuracy	1°
Wind speed measurement range	0~75m/s
Wind direction measurement range	0~360°

General Parameters

Powered Supply	24V DC，90~270V
Power Consumption	70W
Dimensions	500500602mm
Weight	46kg
Range of working temperature	-40℃ ~ 50℃
Working humidity range	0% to 100%
Protection level	IP67 (Housing)
Eye safety	Class 1M(EN60825-1)

Data Parameters

Data output	Horizontal wind speed, vertical wind speed, wind direction, time stamp, GPS, temperature and humidity pressure, statistical data
Data Format	ASCII
Communication	RJ45 Cable, 3G/4G,WiFi, and Satellite communication (optional)

Download the Full specification of Molas B300.

Certification and Calibration Reports of Molas B300 Doppler Wind Profile LiDAR

DNV-GL Type Specific Classification For Molas B300 Doppler Onshore wind LiDAR Systems

DNV-GL has conducted an independent classification assessment of three lidar units of type MOLAS B300 doppler wind LiDAR according to the IEC 61400-12-1 Ed. 2 [4].

The classification measurement campaigns took place over two sites, with one Lidar deployed at two different sites and another lidar deployed at one site, so a total of three separate campaigns were analysed. DNV was responsible for conducting all three classfication campaigns. The first and the second classification campaigns took place at the Hamburg and Janneby test site to classify the unit MOLAS B300-117 [1] [2]. The third classification campaign took place also in Hamburg to classify the second unit MOLAS B300-202 [3].

In the report, a summary of all classification task assessments of the type MOLAS B300 lidar are shown in the picture left, and the type-specific class and standard uncertaintity of Molas B300 are average 2.4% and 1.4% respectively.

Click HERE to Download the full report.

DNV-GL Independent performance verification for Molas B300 Doppler Onshore Wind LiDAR Sensor

DNV-GL completeD an independent remote sensing verification of a Molas B300 onshore wind LiDAR at The DNV GL Hamburg Test Site near Hamburg, Germany between 2020-02-18 and 2020-03-28. This verification includes results and uncertainty calculations as defined in the International Electrotechnical Commission (IEC) 61400-12-1 power performance test standard Edition 2 (the IEC Standard) [2], Annex L.

Click HERE to Download the full report.
