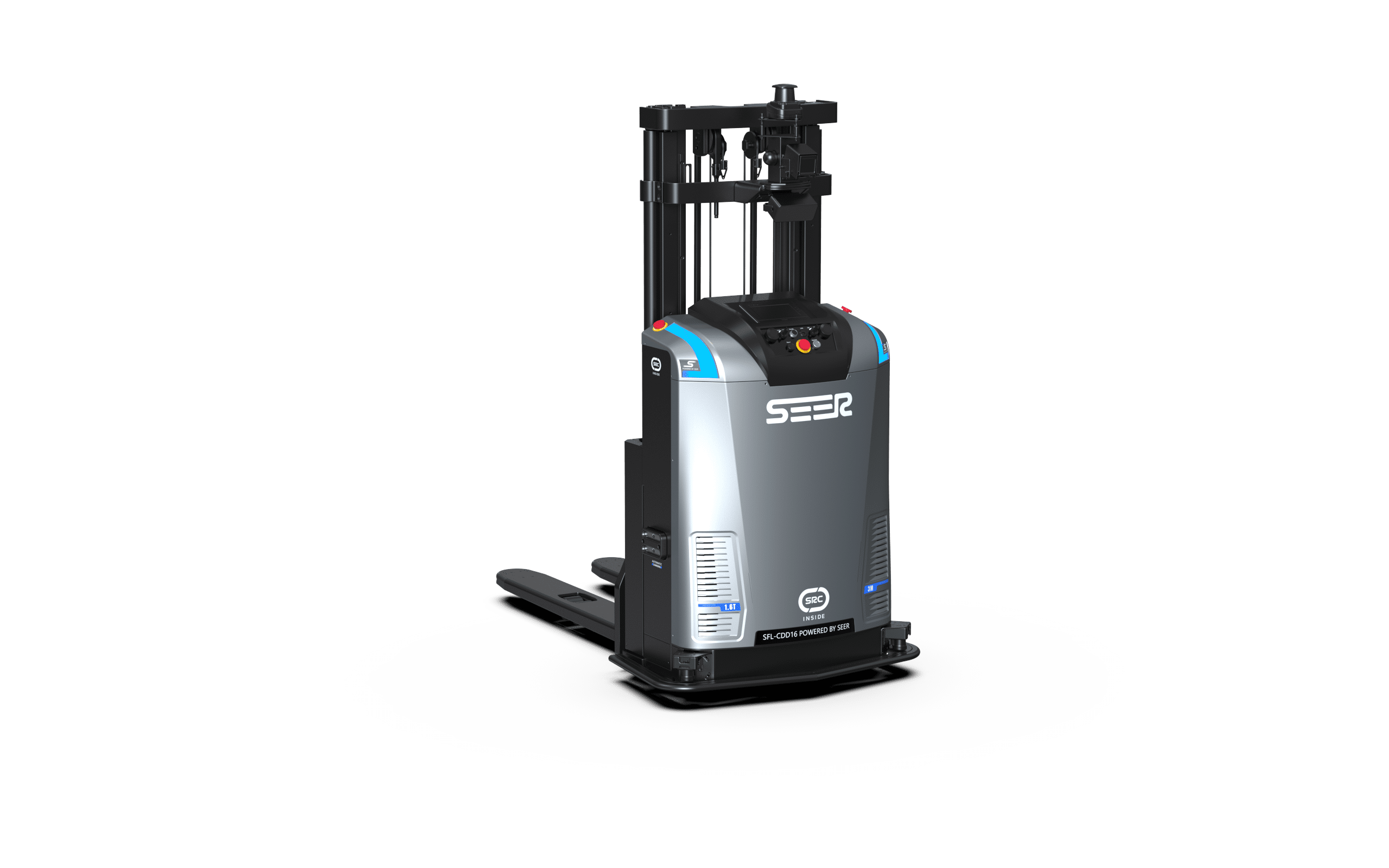

SFL-CDD16 Automated Forklift – 1.6T Capacity, Lifting Up to 3m

Request For Quote

Automated forklift in small size but with 3M Lifting with Stable Load Capacity (1.6T), with 360° Large Field of View, Multiple Security Protection

SLAM Navigation, Precise and Convenient

SLAM navigation with an accuracy of ±1Omm, without reflectors and easily deployed.

3M Lifting with Stable Load Capacity (1.6T)

The load capacity will not decrease and remains at 1 ,6T when lifting to 3M.

Pallet Recognition, Precise and Efficient

High-precision identification and precise pallets forking to guaranteed handling speed.Identification of international standard pallets, European standard pallets, and non-standard pallets.

Support up to 400,000m2 Large Map

Identification of maps up to 400,000m 2, easily transcending area restrictions and providing greater handling space and more storage options.

Speed Increase 100% up to 2m/s

Maximum 2m/s running speed, 100% faster than the old model pallet truck.

Quick Charge and Change, Dual Battery and Double Endurance

Supports up to 100A fast charging. Charging 2h for single battery can run 8-10H.

General Specifications

Technical Parameters

Driving mode: Automatic navigation, handheld driving

Navigation type: Laser SLAM
Tray type: 3-stringer pallet
Rated load capacity: 1600kg
Load centre distance: 600mm
Wheelbase: 1297mm
Dead weight (with battery): 1090kg
Navigation position accuracy: ±10mm
Navigation angle accuracy: ±0.5°
Standard lifting height: 3000mm
Fork surface ground clearance(at the lowest position): 90mm
Navigation laser scanning height: 2020mm
Vehicle size: length * width * height: 1 832mm*1050mm*2040mm
Fork size: length * width * height: 1220mm*185mm*55mm
Map area (Single): <400000m 2
Minimum turning radius: 1340mm+200mm

Wheel parameters

Tire type:  Polyurethane
Tire size:

driving wheel: 248*75mm

bearing wheel: 84*70mm

balance wheel: 115*55mm
Wheel number: driving wheel/balance wheel / bearing wheel : 1/2/4

Performance parameters

Driving speed: full load/no load: 2/2 m/s

Lifting speed: full load/no load: 100/180 mm/s
Lowering speed: full load/no load: 245/230 mm/s
Passability (slope/step/gap): 5%/5mm/15mm

Battery parameters

Battery specifications: 24V/1 73Ah (Lithium Iron Phosphate)
Battery weight: 60kg
Comprehensive battery life: 8-10h
Charging parameters: 24V/100A
Charging time (1 0%-80%):  2h
Charging method:  Manual/Automatic

Battery cycle number:  >2000 times

Safety configurations

E-stop button

Vehicle hardware fault detection

360° laser protection

Bumper strip

Fork teeth height protection

Dimension (mm)

SFL-CDD16 DIMENSIONS
