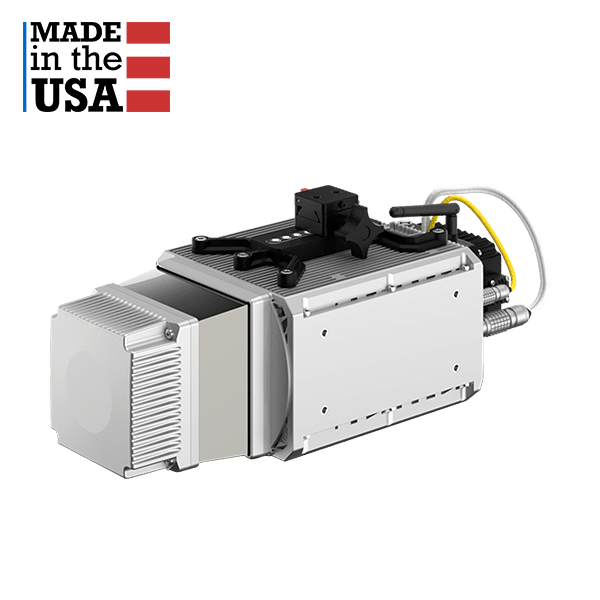

RESEPI-TELEDYNE CL-360HD – From Inertial Labs, Manufactured In USA
Request For Quote
The RESEPI CL-360HD was strategically designed for projects requiring high performance. Due to its powerful 4-return laser and increased range of up to 750m, the CL-360HD would be perfect for mobile mapping, forestry, and crack detection in critical infrastructure areas like airport runways. Because of this diverse use-case portfolio and its 360 FOV, the RESEPI can be used for many services, including utility mapping (power lines), construction volumetrics, site surveying, precision agriculture, forestry, mining operations, and others.
Introduction of RESEPI™ TELEDYNE CL-360HD LiDAR Scanner
About Inertial Labs
Inertial Labs is at the forefront of developing and manufacturing position and orientation technologies for the commercial sector, government, defense, and aerospace. Inertial Labs’ product catalog includes Inertial Measurement Units (IMU), Inertial Navigation Systems (INS), Motion Reference Units (MRU), and Wave Sensors (WS) along with RESEPI, our LiDAR scanning and mapping package. We supply solutions for land, sea, and air to exacting customers from some of the largest organizations in the world.
RESEPI Overview
RESEPI™ (Remote Sensing Payload Instrument) is a sensor-fusion platform designed for accuracy-focused remote sensing applications. RESEPI utilizes a high-performance Inertial Labs INS (GPS-Aided Inertial Navigation System) with a tactical-grade IMU and a high-accuracy single or dual-antenna GNSS receiver, integrated with a Linux-based processing core and data-logging software. The platform also provides a WiFi interface, optional imaging module, and external cellular modem for RTCM corrections. RESEPI can be operated by a single hardware button or from a wirelessly connected device via a simple web interface.
RESEPI WITH TELEDYNE CL-360HD
RESEPI equipped with TELEDYNE’s CL-360HD LiDAR is Inertial Labs’ entrance solution to the precision solution market. This powerful system will meet users’ needs, needing the best return count, range, beam divergence, accuracy, and precision. It offers a range of different laser scan speeds and frequencies, allowing users to tweak the settings to match the desired use case easily.
Key System Features of RESEPI™ TELEDYNE CL-360HD Drone LiDAR Scanner
- System Vertical Accuracy: 1 – 2 cm(1)
- Precision: 1 – 2 cm(2)
- Precision: (1σ Noise Removal) 1 – 2 cm (3)
- Recommended AGL: Up to 200 m
- Weight: 4.3 kg (without camera)
- Dimensions: 36.9 x 16 x 15.5 (cm)
- Max Flight Time (DJI M600): 23 minutes (TB48S batteries)
- External Storage: 256GB USB Included
- System Computer: Quad Core, 1GB RAM,8GB eMMC
- Operational Voltage Range: 9-436V
- Power Consumption:42W (@ 100 Hz); 47W (@ 250 Hz)
RESEPI™ TELEDYNE CL-360HD UAV LiDAR Payload Specs
LiDAR
Laser Range Capabilities(100kHz)
205m @ 10% ref.;
290m @ 20% ref.;
490m @ 50% ref.;
1.5 to 750m(4)
Laser Range Capabilities(200kHz)
130m @ 10% ref.;
185m @ 20% ref.;
250m @ 50% ref.;
1.5 to 750m(5)
Range Accuracy
FOV (Horizontal)
FOV (Vertical)
Scan Angle (Vertical)
Laser Beam Divergence
0.017°(6)
Number of Laser
Number of Returns
Scan Speed
IMU
Grade IMU-P
GNSS
Constellations
QZSS, NavIC (IRNSS), SBAS, L-Band(7)
Frequencies
Operation Modes
Output Rates
Up to 2,000Hz (IMU)
Pitch/Roll Accuracy
0.006° (PPK)(9)
Heading Accuracy
0.03° (PPK)(10)
Velocity Accuracy
Position Accuracy
0.5cm (PPK)
Software
Field Checks
Pre-Processing
Post-Processing
Notes:
(1)(2)Single Pass, 50m AGL, 5m/s, Nadir, Values Based on Inertial Labs Test Conditions.
(3)Single Pass, 50m AGL, 5m/s, Nadir, Single Noise Removal, Values Based on Inertial Labs Test Conditions.
(4)(5)Max Range Capacity.
(6)Varies by measurement range
(7)(8)Maximum available; dependent on receiver configuration.
(9)Dynamic accuracy is dependent on type of motion.
(10)Dynamic accuracy is dependent on type of motion; RTK with a 1-meter
baseline.
FAQ About RESEPI™ TELEDYNE CL-360HD UAV LiDAR Scanner
The FAQ about RESEPI Payloads is coming soon.
Data Processing Software For RESEPI Payloads
Pre-processing
To get the .las format high quality point cloud out of the RESEPI LiDAR payloads for drone, vehicle mounted as wellas SLAM applicaiton.
-
LiDAR Point Cloud Processing SoftwarePCMaster Pro
US$2,500.00 – US$3,500.00 Excl. GST/VAT View products
Post-processing
Once the .las file is generated from PCMaster Pro, then you can use following point cloud processing software to genarate the final deliverables required.
-
LiDAR Point Cloud Processing SoftwareLiDAR360 MLS HD LiDAR Mapping Software – 1 Year Subscription
US$3,600.00 Excl. GST/VAT Add to basket -
LiDAR Point Cloud Processing SoftwareLiPowerline – Powerline Point Cloud Data Analyzing Software – 1 Year Subscription
US$3,600.00 Excl. GST/VAT Add to basket -
LiDAR Point Cloud Processing SoftwareLiDAR360 Point Cloud Data Management, Processing & Analyzing Software – 1 Year Subscription
US$3,600.00 Excl. GST/VAT Add to basket
