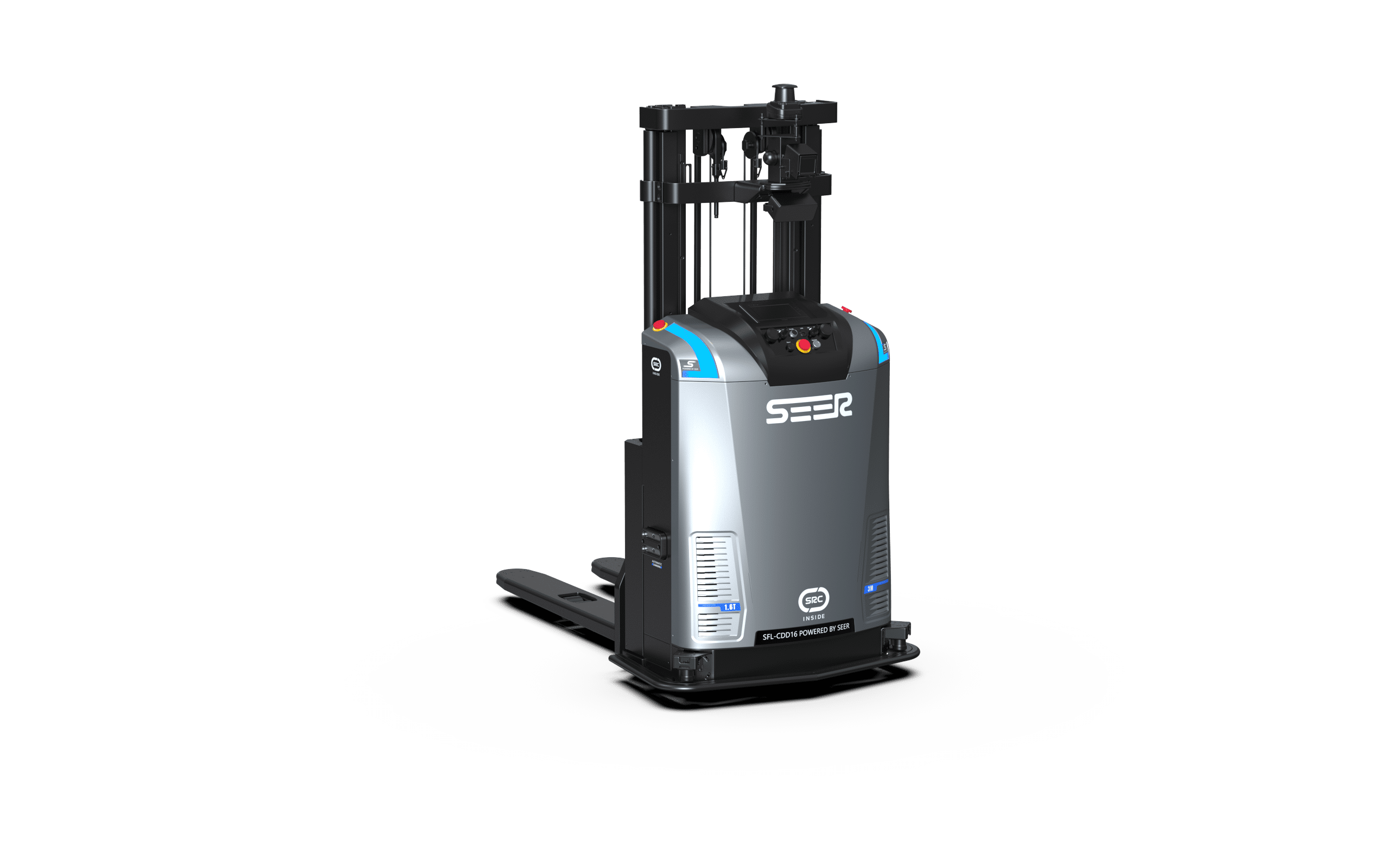

SLAM Navigation, Precise and Convenient
SLAM navigation with an accuracy of ±1Omm, without reflectors and easily deployed.
![](https://www.lidarsolutions.com.au/wp-content/uploads/2023/07/LOGO15.png)
3M Lifting with Stable Load Capacity (1.6T)
The load capacity will not decrease and remains at 1 ,6T when lifting to 3M.
![](https://www.lidarsolutions.com.au/wp-content/uploads/2023/07/LOGO6.png)
Pallet Recognition, Precise and Efficient
High-precision identification and precise pallets forking to guaranteed handling speed.Identification of international standard pallets, European standard pallets, and non-standard pallets.
![](https://www.lidarsolutions.com.au/wp-content/uploads/2023/07/LOGO1.png)
Support up to 400,000m2 Large Map
Identification of maps up to 400,000m 2, easily transcending area restrictions and providing greater handling space and more storage options.
![](https://www.lidarsolutions.com.au/wp-content/uploads/2023/07/LOGO2.png)
Speed Increase 100% up to 2m/s
Maximum 2m/s running speed, 100% faster than the old model pallet truck.
![](https://www.lidarsolutions.com.au/wp-content/uploads/2023/07/LOGO3.png)
Quick Charge and Change, Dual Battery and Double Endurance
Supports up to 100A fast charging. Charging 2h for single battery can run 8-10H.
General Specifications
Technical Parameters
Driving mode: Automatic navigation, handheld driving
Navigation type: Laser SLAM
Tray type: 3-stringer pallet
Rated load capacity: 1600kg
Load centre distance: 600mm
Wheelbase: 1297mm
Dead weight (with battery): 1090kg
Navigation position accuracy: ±10mm
Navigation angle accuracy: ±0.5°
Standard lifting height: 3000mm
Fork surface ground clearance(at the lowest position): 90mm
Navigation laser scanning height: 2020mm
Vehicle size: length * width * height: 1 832mm*1050mm*2040mm
Fork size: length * width * height: 1220mm*185mm*55mm
Map area (Single): <400000m 2
Minimum turning radius: 1340mm+200mm
Wheel parameters
Tire type: Polyurethane
Tire size:
driving wheel: 248*75mm
bearing wheel: 84*70mm
balance wheel: 115*55mm
Wheel number: driving wheel/balance wheel / bearing wheel : 1/2/4
Performance parameters
Driving speed: full load/no load: 2/2 m/s
Lifting speed: full load/no load: 100/180 mm/s
Lowering speed: full load/no load: 245/230 mm/s
Passability (slope/step/gap): 5%/5mm/15mm
Battery parameters
Battery specifications: 24V/1 73Ah (Lithium Iron Phosphate)
Battery weight: 60kg
Comprehensive battery life: 8-10h
Charging parameters: 24V/100A
Charging time (1 0%-80%): 2h
Charging method: Manual/Automatic
Battery cycle number: >2000 times
Safety configurations
E-stop button
Vehicle hardware fault detection
360° laser protection
Bumper strip
Fork teeth height protection
Dimension (mm)
![SFL-CDD16 DIMENSIONS](https://www.lidarsolutions.com.au/wp-content/uploads/2023/07/SFL-CDD16-DIMENSIONS-1024x368.png)
