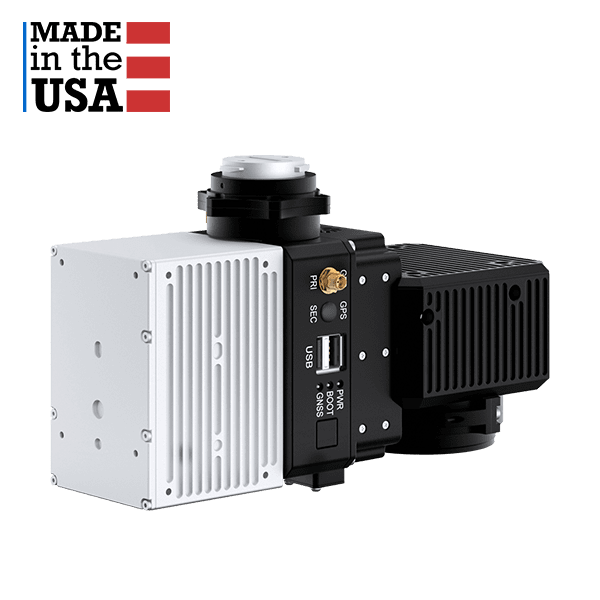

RESEPI-LIVOX AVIA – From Inertial Labs, Manufactured In USA
Request For Quote
RESEPI AVIA excels at surveying thin objects such as powerlines. Utility lines are long with a small diameter and can be challenging for some lasers to track. AVIA’s high point density causes the lines to stand out and appear more clearly in point cloud data. Another great application is surveying long distances over large tracts of land, such as airport runways or racetracks. RESEPI AVIA can be flown at higher speeds, and the narrow Field of View allows for preserving point cloud density. Coupled with the lighter weight of the payload, available flight time is improved.
Introduction of RESEPI™ LIVOX AVIA Drone LiDAR Scanner
About Inertial Labs
Inertial Labs is at the forefront of developing and manufacturing position and orientation technologies for the commercial sector, government, defense, and aerospace. Inertial Labs’ product catalog includes Inertial Measurement Units (IMU), Inertial Navigation Systems (INS), Motion Reference Units (MRU), and Wave Sensors (WS) along with RESEPI, our LiDAR scanning and mapping package. We supply solutions for land, sea, and air to exacting customers from some of the largest organizations in the world.
RESEPI Overview
RESEPI™ (Remote Sensing Payload Instrument) is a sensor-fusion platform designed for accuracy-focused remote sensing applications. RESEPI utilizes a high-performance Inertial Labs INS (GPS-Aided Inertial Navigation System) with a tactical-grade IMU and a high-accuracy single or dual-antenna GNSS receiver, integrated with a Linux-based processing core and data-logging software. The platform also provides a WiFi interface, optional imaging module, and external cellular modem for RTCM corrections. RESEPI can be operated by a single hardware button or from a wirelessly connected device via a simple web interface.
RESEPI WITH LIVOX AVIA
RESEPI equipped with AVIA LiDAR is the lightest configuration, coming in at below 1 kg. It enables longer flight times and increases the selection of drone platforms, including those with lower payload capacity. The narrow scan field of view concentrates laser
measurements, resulting in a higher ground point density. RESEPI AVIA is a compact, lightweight, and competitively priced scanning and mapping solution.
Key System Features of RESEPI™ LIVOX AVIA UAV LiDAR Scanner
- System Vertical Accuracy: 3 – 5 cm(1)
- Precision: 4 – 5 cm(2)
- Precision: (1σ Noise Removal) 2 – 3 cm(3)
- Recommended AGL: Up to 85 m
- Weight: 1.2 kg (with camera),0.9 kg (without camera)
- Dimensions: 20 x 13 x 9.2 (cm)
- Max Flight Time (DJI M300): 33 minutes
- External Storage: 256 GB USB Included
- System Computer: Quad Core, 1GB RAM,8GB eMMC
- Operational Voltage Range: 9-45V
- Power Consumption: 16W
RESEPI™ LIVOX AVIA Specs
LiDAR
Laser Range Capabilities
190m @ 10% ref. (all channels);
320m @ 80% ref. (all channels)
Range Accuracy
FOV (Horizontal)
FOV (Vertical)
Scan Angle (Vertical)
Laser Beam Divergence
0.03° (H), 0.28º(V)(5)
Number of Laser
Number of Returns
Pulse Rate
480k/s (dual return);
720k/s (triple return)
Laser Safety
IMU
Grade IMU-P
GNSS
Constellations
QZSS, NavIC (IRNSS), SBAS, L-Band(7)
Frequencies
Operation Modes
Output Rates
Up to 2,000Hz (IMU)
Pitch/Roll Accuracy
0.006° (PPK)(9)
Heading Accuracy
0.03° (PPK)(10)
Velocity Accuracy
Position Accuracy
0.5cm (PPK)
Camera
Model
Lens
Max Trigger Rate
External Camera Support
Yes(6)
Software
Field Checks
Pre-Processing
Post-Processing
Notes:
(1)(2)Single Pass, 50m AGL, 5m/s, Nadir, Values Based on Inertial Labs Test Conditions.
(3)Single Pass, 50m AGL, 5m/s, Nadir, Single Noise Removal, Values Based on Inertial Labs Test Conditions.
(4)Dependent upon scanning pattern used.
(5)Varies by measurement range.
(6)For select models.
(7)(8)Maximum available; dependent on receiver configuration.
(9)Dynamic accuracy is dependent on type of motion.
(10)Dynamic accuracy is dependent on type of motion; RTK with a 1-meter baseline
FAQ About RESEPI™ LIVOX AVIA UAV LiDAR Scanner
The FAQ about RESEPI Payloads is coming soon.
Data Processing Software For RESEPI Payloads
Pre-processing
To get the .las format high quality point cloud out of the RESEPI LiDAR payloads for drone, vehicle mounted as wellas SLAM applicaiton.
-
LiDAR Point Cloud Processing SoftwarePCMaster Pro
US$2,500.00 – US$3,500.00 Excl. GST/VAT View products
Post-processing
Once the .las file is generated from PCMaster Pro, then you can use following point cloud processing software to genarate the final deliverables required.
-
LiDAR Point Cloud Processing SoftwareLiDAR360 MLS HD LiDAR Mapping Software – 1 Year Subscription
US$3,600.00 Excl. GST/VAT Add to cart -
LiDAR Point Cloud Processing SoftwareLiPowerline – Powerline Point Cloud Data Analyzing Software – 1 Year Subscription
US$3,600.00 Excl. GST/VAT Add to cart -
LiDAR Point Cloud Processing SoftwareLiDAR360 Point Cloud Data Management, Processing & Analyzing Software – 1 Year Subscription
US$3,600.00 Excl. GST/VAT Add to cart
