DJI M350 RTK Drone / UAV

Request For Quote

The Matrice 350 RTK, an updated flagship drone platform, raises the bar for the sector. This next-generation drone platform includes robust payload and expansion capabilities, an all-new video transmission system and control experience, an improved battery system, and more extensive safety features. It is totally capable of giving any aerial action newfound strength.

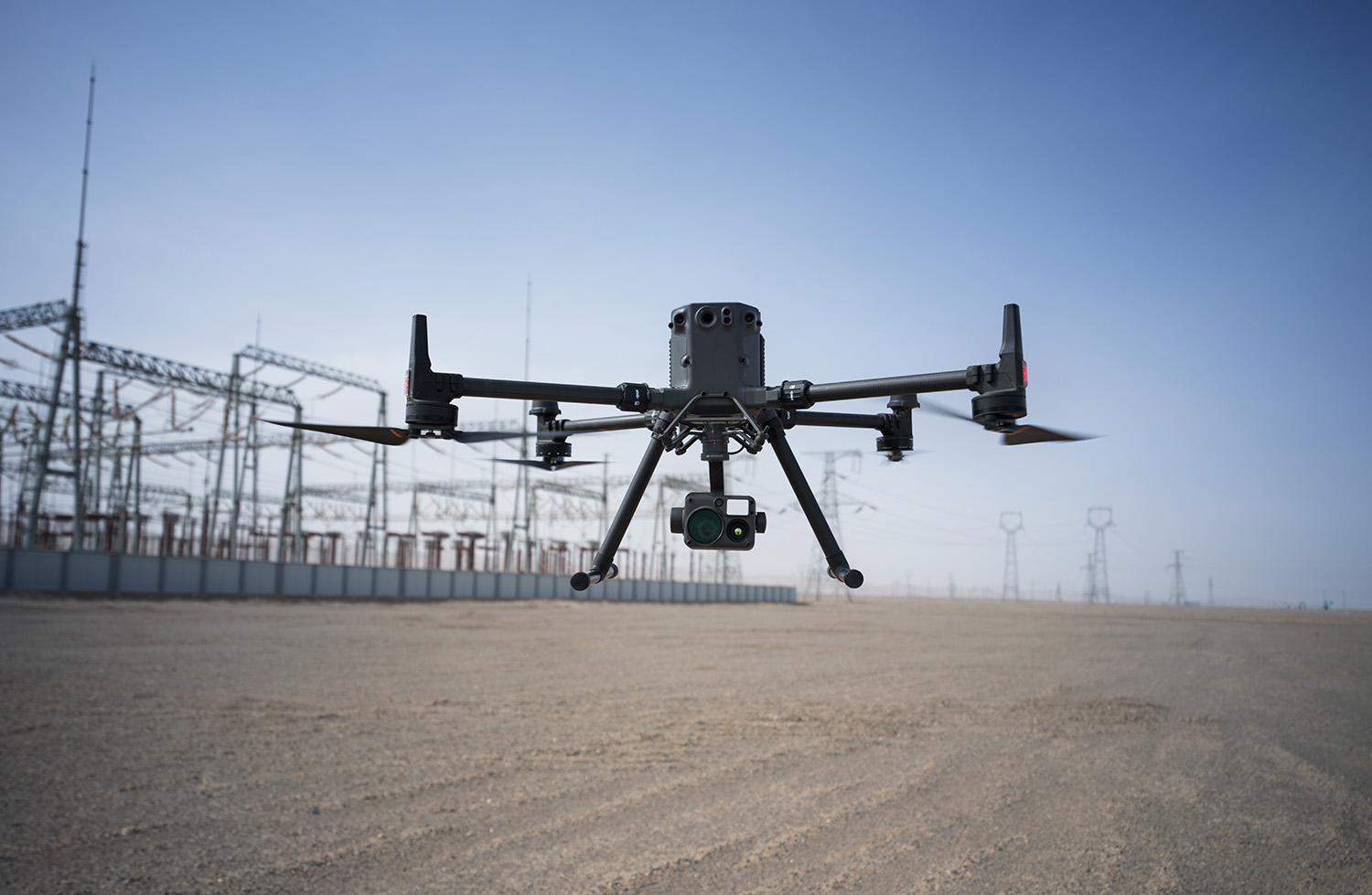

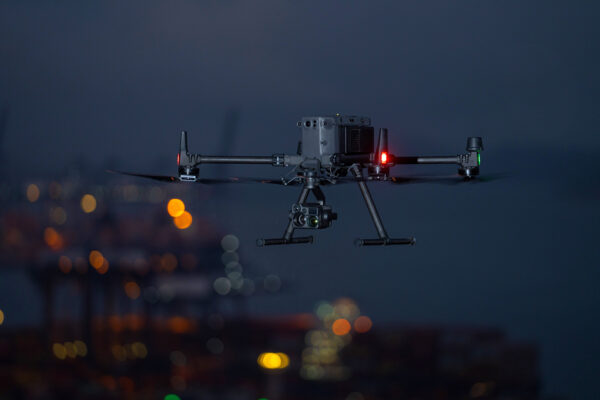

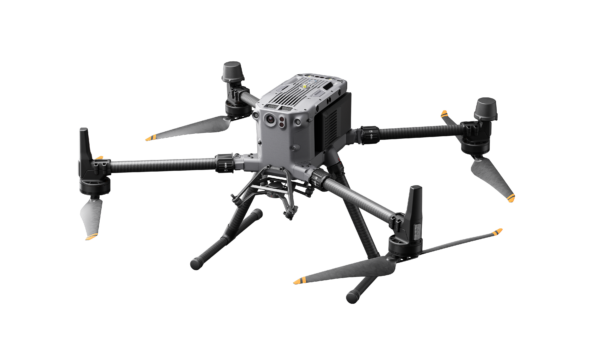

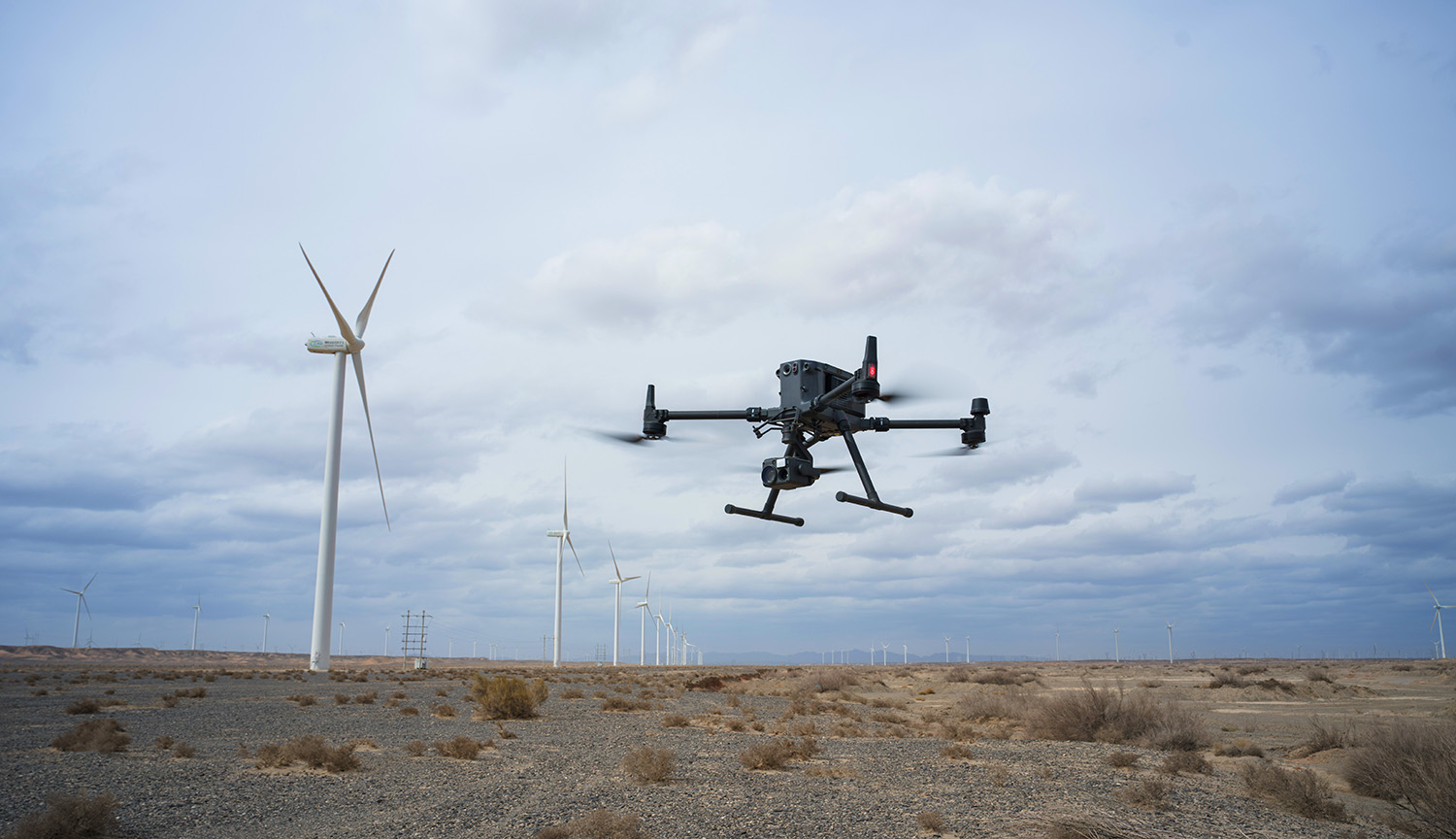

DJI M350 RTK Drone & UAV

Next-generate Flagship DJI drone platfrom

DJI M350 KEY FEATURES

DJI M350 Specs

Dimensions (unfolded, without propellers)

810×670×430 mm (L×W×H)

Dimensions (folded, with propellers)

430×420×430 mm (L×W×H)

Diagonal Wheelbase

895 mm

Weight (with single downward gimbal)

Without batteries:
Approx. 3.77 kg

With two TB65 batteries:
Approx. 6.47 kg

Single Gimbal Damper’s Max Payload

960 g

Max Takeoff Weight

9.2 kg

Operating Frequency

2.4000-2.4835 GHz
5.150-5.250 GHz (CE: 5.170-5.250 GHz)
5.725-5.850 GHz

In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information.

Transmitter Power (EIRP)

2.4000-2.4835 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)

5.150-5.250 GHz (CE: 5.170-5.250 GHz):
< 23 dBm (CE)

5.725-5.850 GHz:
< 33 dBm (FCC/SRRC)
< 14 dBm (CE)



Hovering Accuracy (with moderate or no wind)

Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)

Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)



RTK Positioning Accuracy (RTK FIX)

1 cm + 1 ppm (horizontal)
1.5 cm + 1 ppm (vertical)


Max Angular Velocity

Pitch: 300°/s
Yaw: 100°/s


Max Pitch Angle

30°
When in N mode and with the forward vision system enabled: 25°.


Max Ascent Speed

6 m/s

Max Descent Speed (vertical)

5 m/s

Max Tilted Descent Speed

7 m/s

Max Horizontal Speed

23 m/s

Max Flight Altitude

5000 m
When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg.

7000 m
When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg.



Max Wind Speed Resistance

12 m/s


Max Flight Time

55 minutes
Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.


Supported DJI Gimbals

Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, and Zenmuse L1


Third-Party Payload

Supports only certified payloads developed based on DJI Payload SDK.


Supported Gimbal Configurations

Single downward gimbal
Single upward gimbal
Dual downward gimbals
Single downward gimbal + single upward gimbal
Dual downward gimbals + single upward gimbal


Ingress Protection Rating

IP55
The IP rating is not permanently effective and may decrease due to product wear and tear.


Global Navigation Satellite System

GPS + GLONASS + BeiDou + Galileo


Operating Temperature

-20° to 50° C (-4° to 122° F)

DJI M350 Battery And Charger Specs

Model

TB65


Capacity

5880 mAh


Voltage

44.76 V


Type

Li-ion


Energy

263.2 Wh


Weight

Approx. 1.35 kg


Operating Temperature

-20° to 50° C (-4° to 122° F)


Ideal Storage Temperature

22° to 30° C (71.6° to 86° F)


Charging Temperature

-20° to 40° C (-4° to 104° F)
When the ambient temperature is below 5° C (41° F), the battery will trigger the auto-heating function. Charging at low temperatures may reduce battery life. It is recommended to charge at 15° to 35° C (59° to 95° F).


Charging Time

With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.
With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.

DJI M350 vs DJI M300

Few upgrades have been made for DJI M350 RTK drone comparing to its precedecer M300 RTK.

DJI M350 Payloads

DJI Payloads
